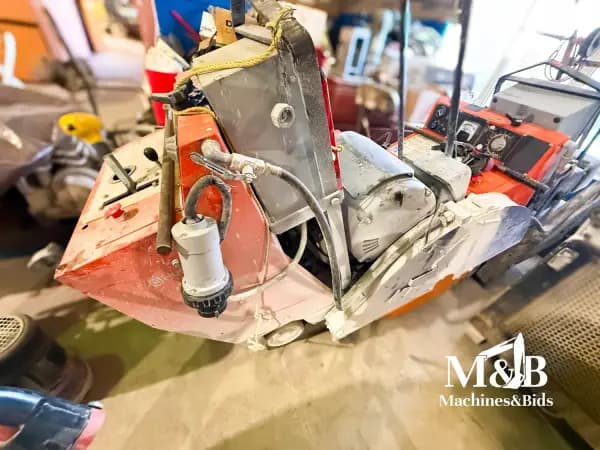

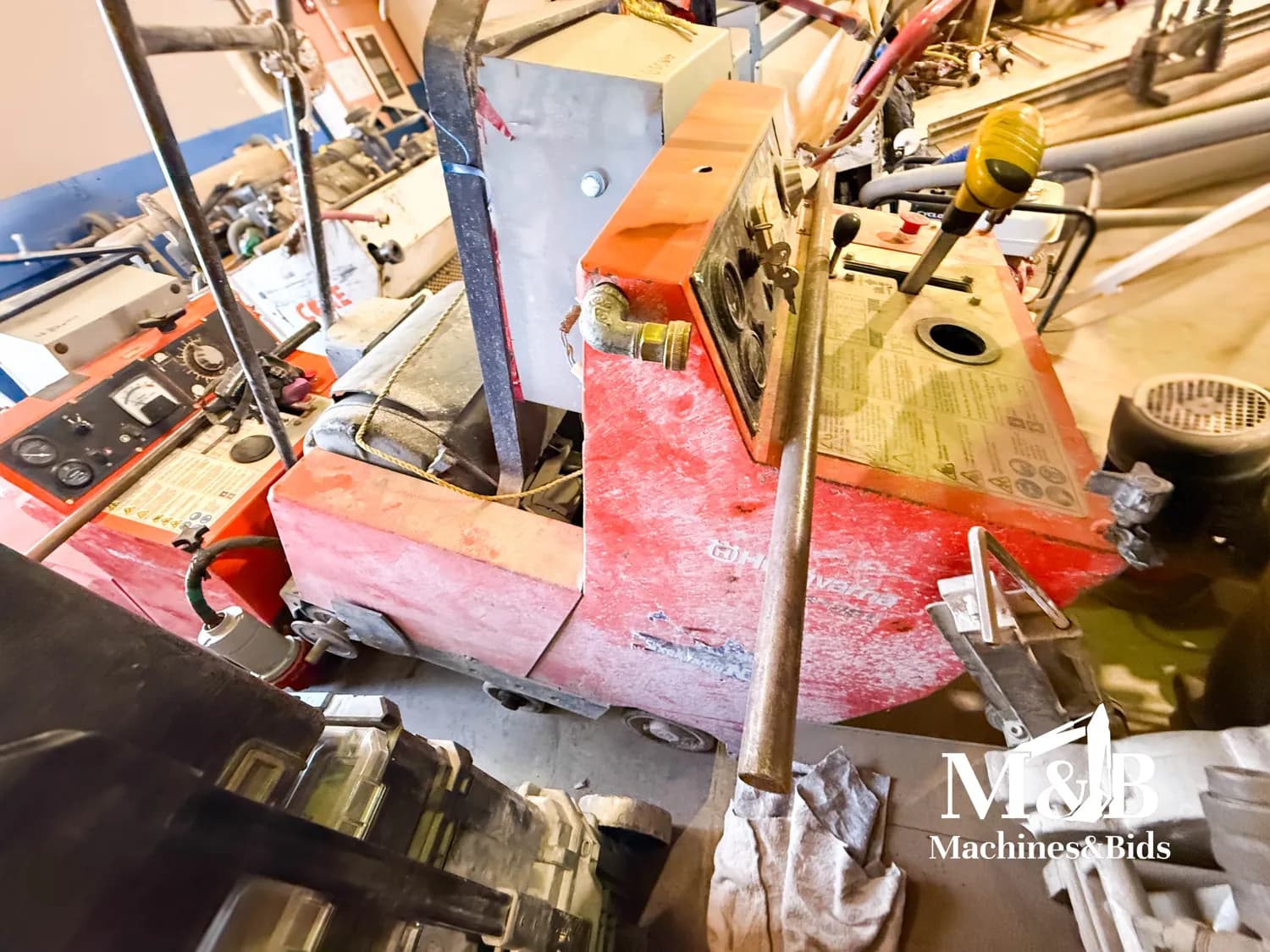

HUSQVARNA FS600E for sale

Name: HUSQVARNA FS600E
Brand: HUSQVARNA

Stock #1932

Asphalt / Pavers / Concrete Equipment

0 watchersSign in to watch

Contact for price

Make: HUSQVARNA
Model: FS600E
Year: 0
Condition: used
Hours: 1512 h

Make an offer Request a visit

Description

Husqvarna FS 600 E (600 V three-phase) General Specifications Type: Industrial electric concrete saw / floor saw Make / Model: Husqvarna FS 600 E Supply voltage: 600 V AC three-phase Frequency: 60 Hz Motor: 15 kW (20 HP) electric motor – air-cooled Transmission: Reinforced V-belts Control: Mechanical with descent lever and fine-adjustment handwheel Operating hours: 1,512 hours (meter reading) Cutting Capacity Maximum blade diameter: 750 mm (30 in) Maximum cutting depth: 300 mm (12 in) Blade bore: 25.4 mm (1 in) Blade position: Right side (standard) Depth adjustment: Manual (lever + graduated handwheel) Electrical Specifications Rated power: 15 kW (≈ 20 HP) Voltage: 600 V three-phase Rated current: Approximately 24 A Connection type: Industrial connector 60 A / 600 V / 3P + G Protection: Motor circuit breaker and emergency stop Indicators: Voltmeter, ammeter, and Datcon hour meter Cooling System Blade cooling: Water Pump: Integrated electric pump (often 120 V or 24 V AC/DC) Integrated tank: 20 to 25 L Water inlet: External quick-connect fitting Flow control: Manual valve near the console Frame and Ergonomics Structure: Heavy-duty welded steel Weight: Approximately 390 to 420 kg (860 – 925 lb) Dimensions (L × W × H): 1,500 × 670 × 1,100 mm Handlebar: Height-adjustable Wheels: Front swivel + rear fixed with line-guide adjustment Blade guard: Metal with integrated protection Safety and Controls Red emergency stop Motor thermal protection Key-start switch Displays: Voltage, current, operating hours Operator manual mounted on the top cover (diagrams visible in photos) Typical Use Cutting reinforced concrete, asphalt, or industrial floors Ideal for indoor use (zero emissions) or enclosed job sites Widely used in municipal shops, garages, and factories equipped with 600 V three-phase power Observed Unit Condition Good overall working condition, complete (guard, pump, levers, gauges) Hours: 1,512 h Concrete dust visible → normal job-site use No apparent missing parts
