DIAMOND CC6571 for sale

Name: DIAMOND CC6571
Brand: DIAMOND

Stock #1930

Asphalt / Pavers / Concrete Equipment

0 watchersSign in to watch

Contact for price

Make: DIAMOND
Model: CC6571
Year: 0
Condition: used
Hours: 738 h

Make an offer Request a visit

Description

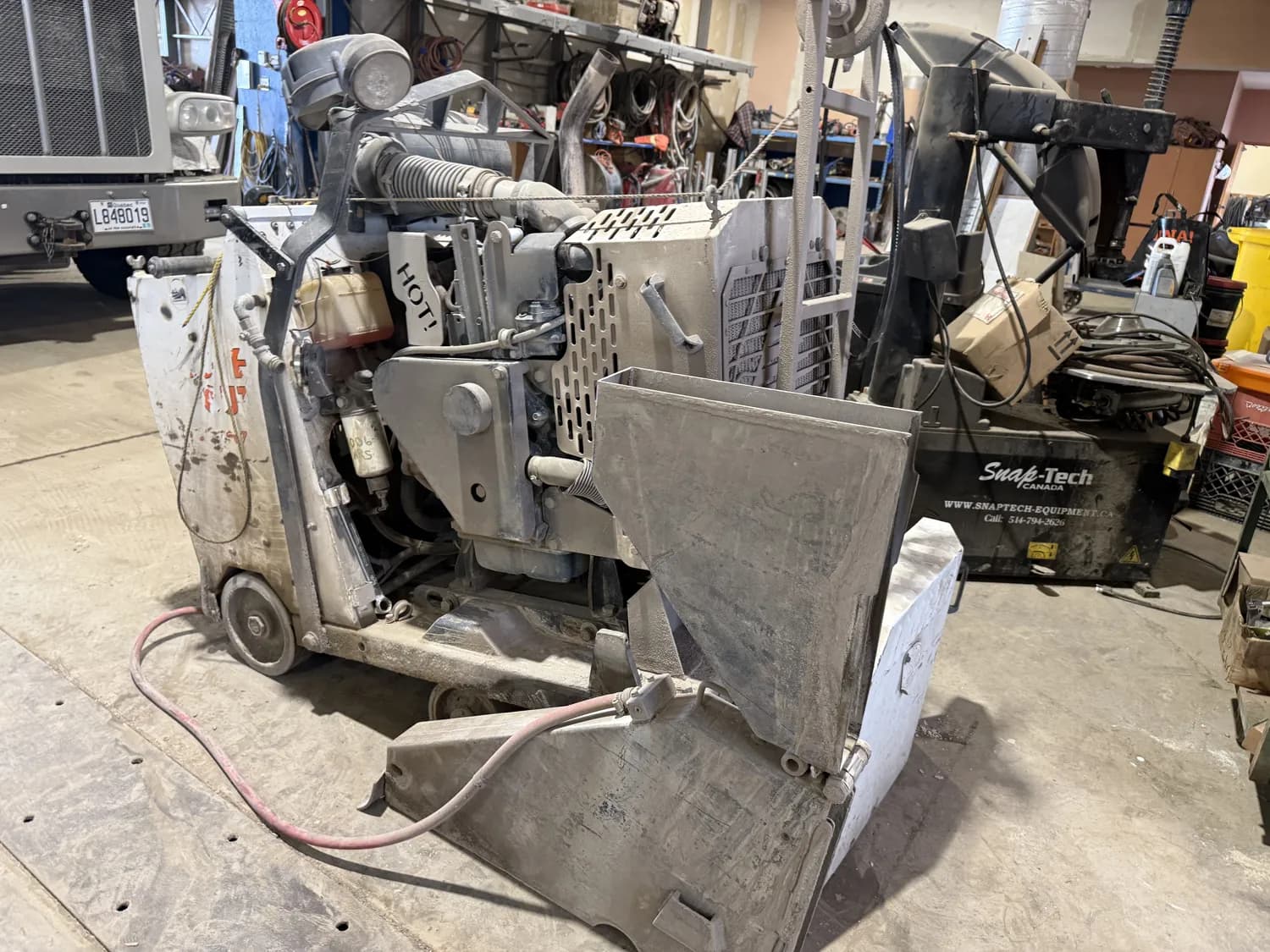

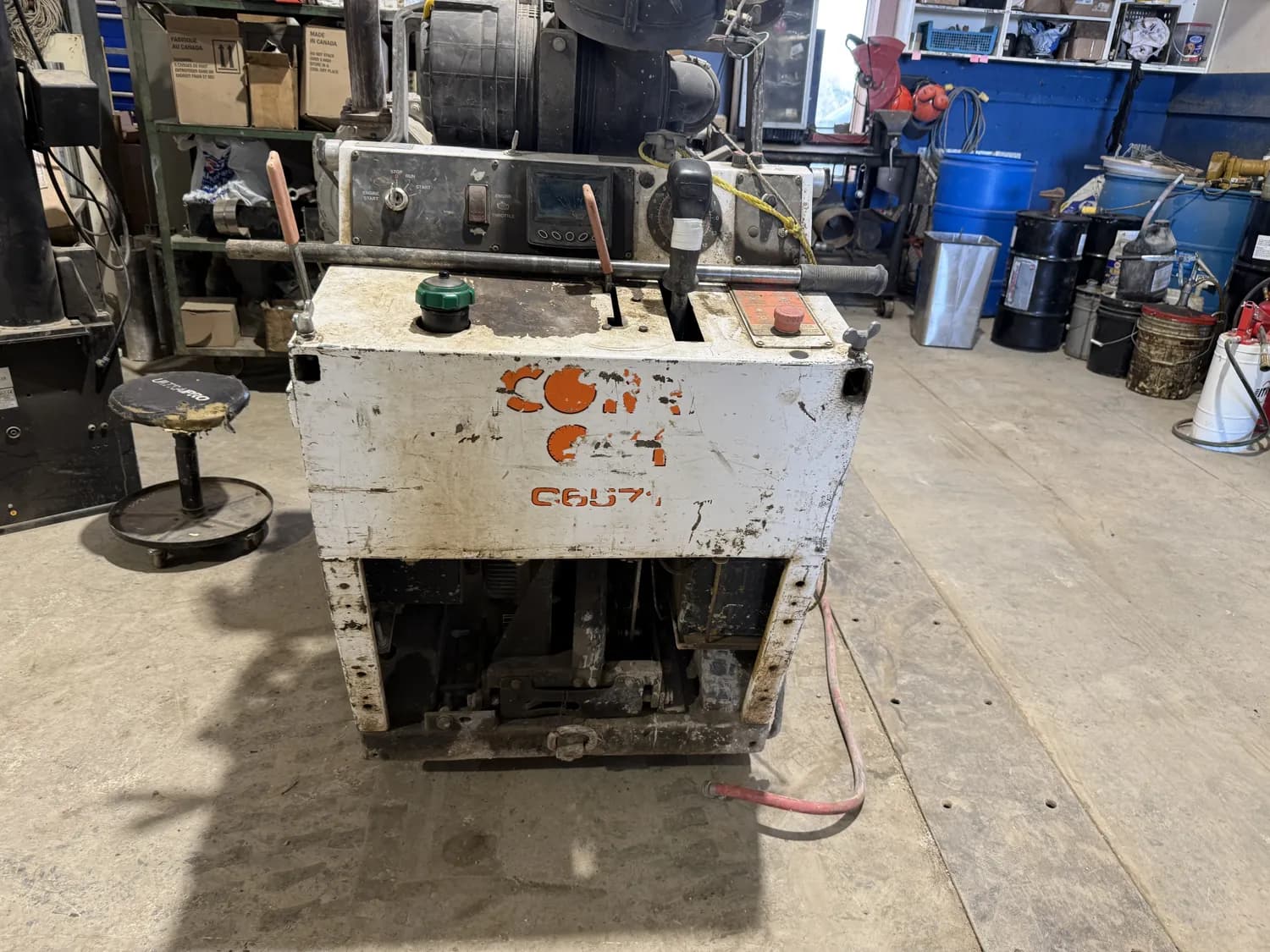

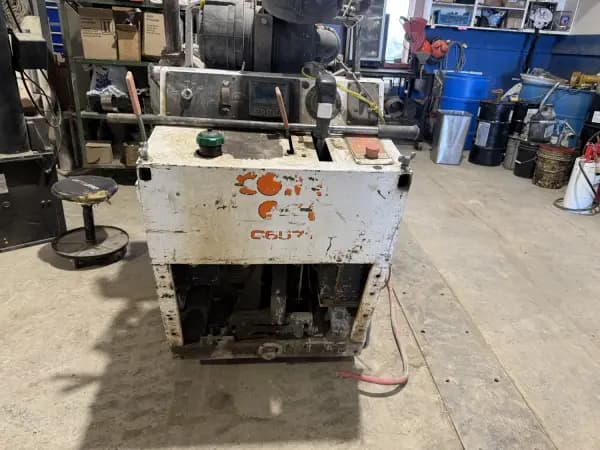

General Identification • Make: Core Cut (Diamond Products) • Model: C6571 • Type: Self-propelled walk-behind concrete saw • Category: Floor saw / deep-cut saw • Use: Cutting concrete, asphalt, industrial floors and slabs • Observed hour meter: ~738 h • Country of manufacture: United States Powertrain • Engine: Deutz Diesel F3L2011 (visually identifiable in photos) • Type: Diesel, 3-cylinder air-cooled • Displacement: 2.1 L • Net power: 71 HP (53 kW) @ 2,500 RPM • Starting: 12V electric • Average fuel consumption: 5–6 L/h • Fuel tank: ~30–35 L • Air filter: Dual high-capacity cartridge • Vertical exhaust with high outlet Mechanical Specifications Element. Detail Transmission. Hydraulic (variable forward/reverse propulsion) Steering Manual via side levers Depth control Hydraulic, lever-operated Cutting speed. Adjustable (from 0 to approximately 40 m/min) Blade cooling Integrated water system, regulating valve Parking brake Mechanical Engine protection Louvered side cover + Deutz fan Hour meter 738.1 h (screen cracked but functional) Cutting System Element Detail Blade type Segmented industrial diamond Maximum blade diameter 36 in (914 mm) Maximum cutting depth ≈ 14 in (356 mm) Cutting arbor 1-1/2 in (38 mm) Rotation speed Approximately 2,500 RPM Blade mounting Quick-clamp flange Guard Foldable steel side guard Dimensions and Weight Element Value Total length ~ 80 in (2.03 m) Width ~ 33 in (0.84 m) Height ~ 55 in (1.40 m) Approximate weight 1,300–1,450 kg (2,900–3,200 lb) depending on engine version Center of gravity Low – for stability during deep cutting Systems and Safety • Emergency stop (E-STOP) on upper panel • Indicators: Oil pressure, temperature, fuel, engine RPM • Control screen: Digital multifunction (currently cracked) • Spark arrestor and "HOT" exhaust identified • Robust lateral blade guard for work in concrete/dust environments
